Impact Sensor: Locations

Component Locations: Airbag Systems

Airbag Crash Sensors Overview







1 - Front Passenger Front Airbag Crash Sensor -G284-
• Location: On the headlamp housing bracket => [ Front Airbag Crash Sensor ] See Image Below.

3 - Front Passenger Side Airbag Crash Sensor -G180-
Location: in the door => [ Side Airbag Crash Sensor ] See Image Below.

5 - Rear Side Airbag Crash Sensor (on front Passenger side) -G257-
• Location: on the inner wheel housing behind the side trim panel => [ Rear Side Airbag Crash Sensor ] See Image Below.

8 - Rear Side Airbag Crash Sensor (on Driver side) -G256-
• Location: on the inner wheel housing behind the side trim panel => [ Rear Side Airbag Crash Sensor ] See Image Below.

9 - Driver Side Airbag Crash Sensor -G179-
• Location: in the door => [ Side Airbag Crash Sensor ] See Image Below.

12 - Driver Front Airbag Crash Sensor -G283-
• Location: On the headlamp housing bracket => [ Front Airbag Crash Sensor ] See Image Below.


Front Airbag Crash Sensor






1 - Similar installation for right and left.

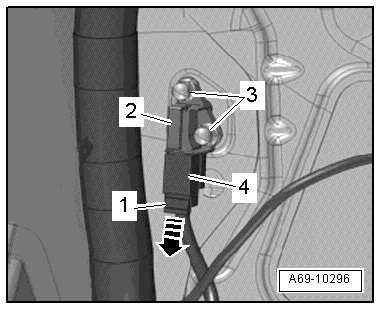

Side Airbag Crash Sensor






4 - Similar installation for right and left.

Rear Side Airbag Crash Sensor






2 - Similar installation for right and left.
