Engine Speed Sensor: Service and Repair

Engine Speed Sensor (G28)

Removing

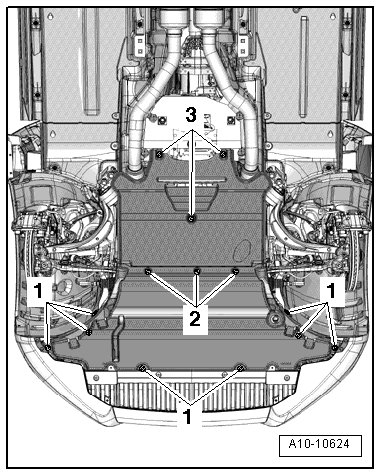

- Remove the noise insulation, to do this, loosen the mounting parts - 1, 2, 3 -.

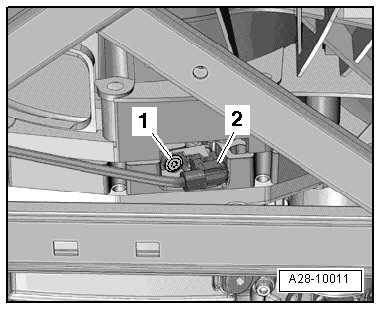

- Disconnect the connector - 2 -.






- Remove the bolt - 1 - and the RPM sensor.

Installing

Install in reverse order of removal.

• Tightening Specifications: Component location overview, refer to => [ Component Location Overview ] Locations
