Trunk Lamp Switch: Service and Repair
Rear Lid Contact Switch

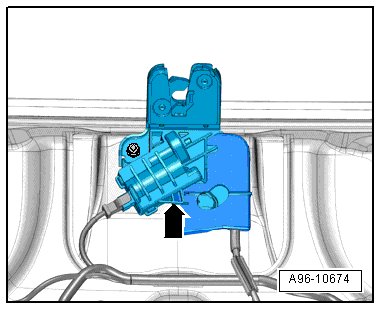

The rear lid contact switch -
arrow
- is located in the rear lid lock and cannot be replaced separately if faulty.
-
Replace the rear lid lock.
