Hazard Warning Switch: Service and Repair

Emergency Flasher Button (E229)

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- Switch off the ignition and remove the ignition key.

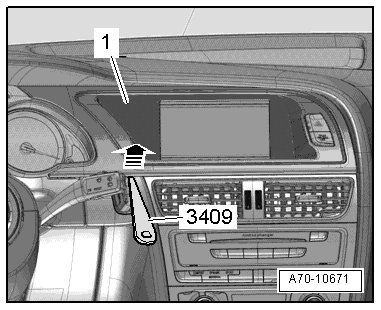

- Pry off the cover for the - 1 - Multi Media Interface (MMI) screen on the corners using the (3409) - arrow -.

- Disconnect the electrical connector and remove the installation frame.

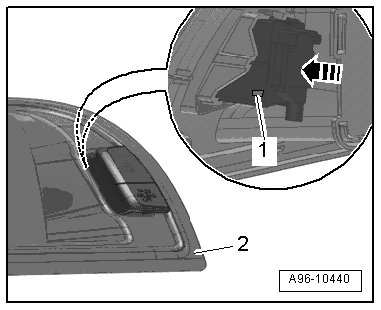

- Press the emergency flasher button - item 1 - out of the installation frame - 2 - - arrow -.






Installing

Install in reverse order of removal, observing the following:

- Press the MMI screen cover into the mounting points until the clips engage completely.
