Outside Temperature Display Sensor: Service and Repair

Outside Air Temperature Sensor Bracket

Removing






- Remove the outside air temperature sensor (G17).

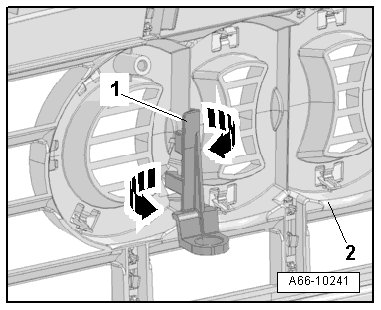

- Release the clips - arrows - and remove the bracket - 1 - from the radiator grille - 2 -.

Installation

Installation is reverse of removal, but note the following:

- Position the bracket on the radiator grille and press it on until it engages audibly.

- Install the outside air temperature sensor (G17).
