Right Front Upper Body Vent Temperature Sensor (G386)

Right Front Upper Body Vent Temperature Sensor (G386)

• The Right Front Upper Body Outlet Temperature Sensor is installed only on vehicles with a "Comfort" version A/C system.

Removing

- Turn off the ignition.

- Remove the glove compartment.

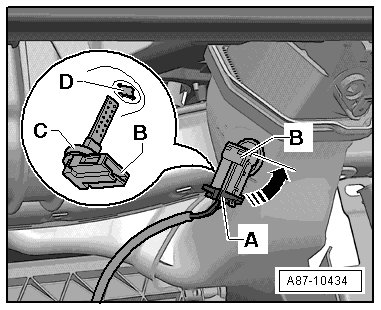

- Disconnect the connector - A - from the temperature sensor.






- Turn the right front upper body vent temperature sensor - B - 90° and remove it from the mount inside the air channel guide - D -.

Installing

Installation is carried out in the reverse order while observing the following.

- Check the seal - C - for damage and proper seating.

- Switch on the ignition.

- Check the Climatronic control module (J255) DTC memory and erase any displayed malfunctions if necessary. Refer to the Vehicle diagnostic tester in "Guided Fault Finding".
