Footwell Vent Temperature Sensor (G192)/Left Footwell Vent Temperature Sensor (G261)

Footwell Vent Temperature Sensor (G192)/Left Footwell Vent Temperature Sensor (G261)

The Footwell Outlet Temperature Sensor is installed only on vehicles equipped with the "Basis" A/C system.

The Left Footwell Vent Temperature Sensor is installed only on vehicles equipped with the "Comfort" A/C system.

• Different designation, of the currently identical sensor, depending on the A/C version. Refer to => [ A/C Unit and Air Intake Housing Components ] A/C Unit and Air Intake Housing Components (A/C components)

Removing

- Move the driver seat as far back as possible.

- Turn off the ignition.

- Remove the storage compartment under the dash panel on the driver's side.

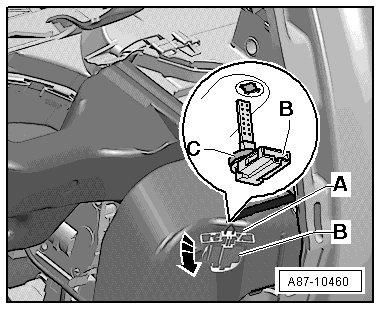

- Disconnect connector - A -.






- Turn the sensor - B - 90° and remove it from the left (driver's side) footwell vent.

Installing

Installation is carried out in the reverse order while observing the following.

- Check the seal - C - for damage and proper seating.

- Reinstall the removed parts in the opposite order.

- Check the Climatronic control module (J255) DTC memory and erase any displayed malfunctions if necessary. Refer to the Vehicle diagnostic tester in "Guided Fault Finding".
