Outside Air Temperature Sensor (G17), From MY 2012

Outside Air Temperature Sensor (G17), from MY 2012

Removing






- Remove the lock carrier cover.

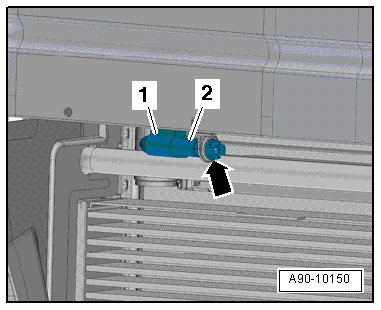

- Press the retaining clips together carefully - arrow - and remove the outside air temperature sensor from the bracket - 2 -.

- Disconnect the electrical connector - 1 -.

• The front bumper cover is removed in the illustration.

Installing

Install in reverse order of removal. Note the following:

- Install the lock carrier cover.
