Right Rear ABS Wheel Speed Sensor (G44) and Left Rear ABS Wheel Speed Sensor (G46)

Right Rear ABS Wheel Speed Sensor (G44) and Left Rear ABS Wheel Speed Sensor (G46)

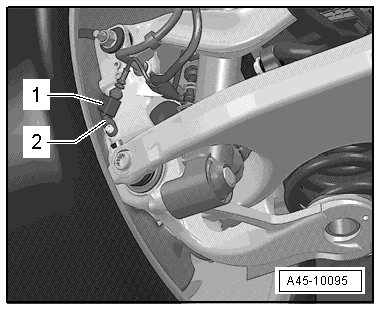

Left rear illustration.






1 - Speed Sensors

2 - Hex Socket Head Bolt

• 8 Nm.

• The sensor ring/rotor is installed in the respective wheel bearing unit and cannot be replaced.

Removing

- Raise the vehicle.

- Unlock and disconnect the connector - 1 - from the speed sensor.






- Remove the bolt - 2 -.

- Remove speed sensor from wheel bearing housing.

Installing

Installation is the reverse of removal, with special attention to the following:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with Polycarbamide grease G 000 650.

- Lower the vehicle.
