Right Front ABS Wheel Speed Sensor (G45) and Left Front ABS Wheel Speed Sensor (G47)

Right Front ABS Wheel Speed Sensor (G45) and Left Front ABS Wheel Speed Sensor (G47)

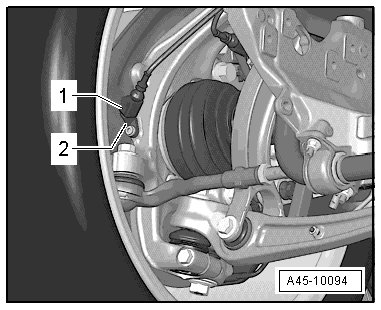

Right front illustration






1 - Speed Sensors

2 - Hex Socket Head Bolt

• 9 Nm

• The sensor ring/rotor is installed in the respective wheel bearing unit and cannot be replaced.

Removing

- Raise the vehicle.

- Unlock and disconnect the connector - 1 - from the speed sensor.






- Remove the bolt - 2 -.

- Remove speed sensor from wheel bearing housing.

Installing

Installation is the reverse of removal, with special attention to the following:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with Polycarbamide grease G 000 650.

- Turn the steering completely left and right after installation, making sure the speed sensor wiring has sufficient clearance.

- Lower the vehicle.
