Center Console Lamps and Switches

Electromechanical Parking Brake (E538) and -AUTO HOLD- (E540) Buttons

Removing






- Vehicles with Multi Media Interface (MMI) basic equipment: Remove the center console cover.

- Vehicles with MMI comfort equipment: Remove the multimedia control head (E380).

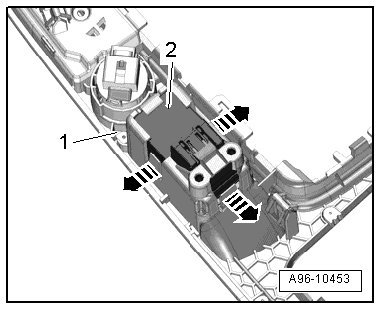

- Release the retaining clips - arrows - and press the electromechanical parking brake button (E538) / -AUTO HOLD- button (E540) - item 2 - out of the multimedia control head - item 1 -.

• The illustration shows the multimedia control head installed

Installing

Install in reverse order of removal, observing the following:

- Vehicles with MMI basic equipment: Install the center console cover.

- Vehicles with MMI comfort equipment: Install the multimedia control head.
