Left Convertible Top Closed Position Switch -F411-







Control modules in interior and rear part ofvehicle

Left Convertible Top Closed Position Switch -F411-

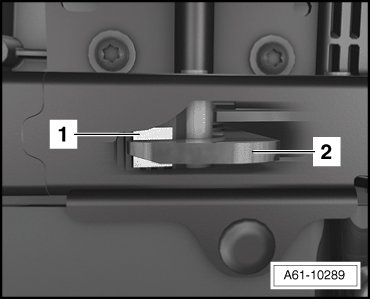

Component Location:





On windshield frame left, in lock bottom part
1 - Left Convertible Top Closed Position Switch -F411-
