Convertible Top Closed Position Switch -F202-







Control modules in interior and rear part ofvehicle

Convertible Top Closed Position Switch -F202-

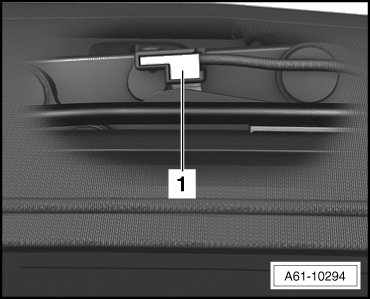

Component Location:





On right side of top, at front hinge
1 - Convertible Top Closed Position Switch -F202-
