4-Spoke-Steering Wheel Overview From MY 2012

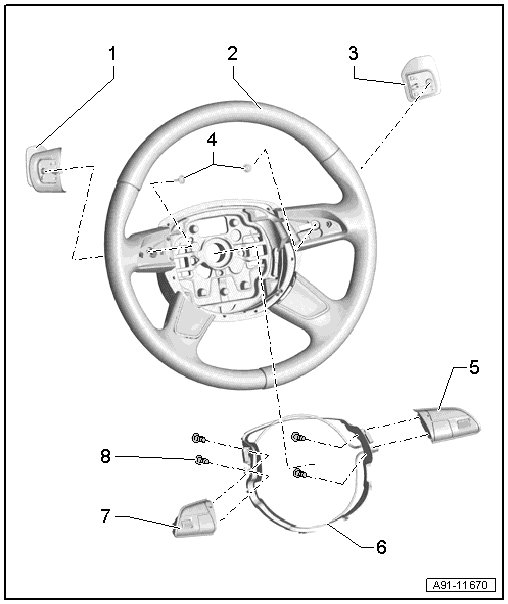

4-Spoke-Steering Wheel Overview from MY 2012






1 Tiptronic Downshift Button on Steering Wheel (E439)

• Removing and installing, refer to => [ Tiptronic Switch from MY 2012 ] Tiptronic Switch From MY 2012

2 4-Spoke Steering Wheel

3 Tiptronic Upshift Button on Steering Wheel (E438)

• Removing and installing, refer to => [ Tiptronic Switch from MY 2012 ] Tiptronic Switch From MY 2012

4 Screw

• 1.2 Nm

5 Right Multifunction Buttons on Steering Wheel (E441)

• Removing and installing, refer to => [ 4-Spoke-Steering Wheel Multifunction Buttons from MY 2012 ] 4-Spoke-Steering Wheel Multifunction Buttons From MY 2012

6 Trim

7 Left Multifunction Buttons on Steering Wheel (E440)

• Removing and installing, refer to => [ 4-Spoke-Steering Wheel Multifunction Buttons from MY 2012 ] 4-Spoke-Steering Wheel Multifunction Buttons From MY 2012

8 Screw

• 1.2 Nm
