Front Parking Aid Sensor (G252)/(G253)/(G254)/(G255) From MY 2012

Front Parking Aid Sensor (G252)/(G253)/(G254)/(G255) from MY 2012

Removing






Outer sensors

- Remove the headlamp housing: Halogen headlamp, refer to => [ Headlamp Housing ] Headlamp Housing, HID headlamp, refer to => [ Headlamp Housing ] Headlamp Housing.

- Press both retainer tabs to the side - arrows - and press the sensor - 2 - through from the outside towards the inside.

- Disconnect the electrical connector - 1 - on the sensor.

Inner sensor






- Remove the lock carrier cover.

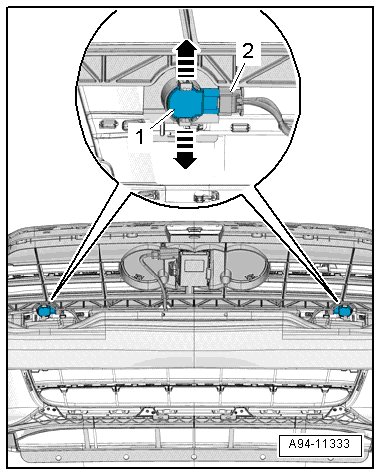

- Reach through the openings in the radiator grille behind the mounts and press both retaining tabs to the side - arrows - while pressing the sensor - 2 - through from the outside to the inside.

- Disconnect the electrical connector - 1 - on the sensor.

Installing

Install in reverse order of removal. Note the following:

Outer sensors

- Remove the headlamp housing: Halogen headlamp, refer to => [ Headlamp Housing ] Headlamp Housing, HID headlamp, refer to => [ Headlamp Housing ] Headlamp Housing.

Inner sensor

- Install the lock carrier cover.
