Seat Occupied Recognition Assembly Overview

Seat Occupied Recognition Assembly Overview

The passenger occupant detection system service kit is pre-calibrated and must not be disconnected. The service kit consists of:

• Passive Occupant Detection System Control Module -J706

• Passive Occupant Detection System Pressure Sensor -G452

• Passive Occupant Detection System Mat

• Seat cushion

• Wiring harness between the passive occupant detection system control module -J706 and passive occupant detection system pressure sensor -G452.

Follow all safety precautions when working on the passenger occupant detection system. Refer to => [ Passive Occupant Detection Sensor, Additional Safety Precautions ] Passive Occupant Detection Sensor, Additional Safety Precautions.

• The passenger occupant detection system is only installed in the front passenger seat.

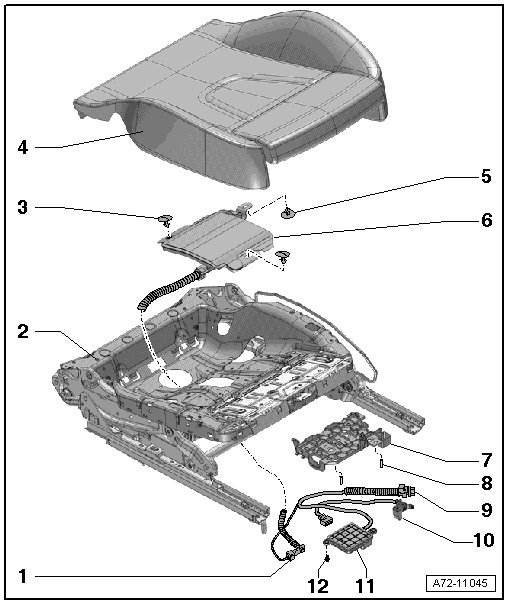

1 Seat Occupied Recognition Pressure Sensor (G452)

• Is part of the seat occupied recognition mat - 6 -

• Removing and installing, refer to => [ Passive Occupant Detection System ] Passive Occupant Detection System

Do not disconnect the electrical connector.

2 Seat Pan

3 Retaining Clip

4 Cushion

• For seat pan

• Do not separate from the seat occupied recognition mat - 6 -

5 Retaining Clip

• Do not release

6 Mat

• For seat occupied recognition

• Is a component with the seat occupied recognition pressure sensor (G452)

• Do not separate from the seat pan upholstery - 4 -

• Removing and installing, refer to => [ Passive Occupant Detection System ] Passive Occupant Detection System

7 Mount

• Depending on the version

• For Seat Occupied Recognition Control Module (J706)

8 Spreader Pin

• For securing the mount to the seat pan

9 Electrical Wiring Harness

• Do not separate from the seat occupied recognition pressure sensor (G452) and seat occupied recognition control module (J706)

10 Passenger Seat Position Sensor (G554)

• Is a component of the electrical wiring harness - 9 -

• Removing and installing, refer to => [ Seat Position Sensor with Seat Occupied Sensor for Passenger Airbag Deactivation ] Seat Position Sensor With Seat Occupied Sensor For Passenger Airbag Deactivation

11 Seat Occupied Recognition Control Module (J706)

• Depending on the version

• Removing and installing, refer to => [ Passive Occupant Detection System ] Passive Occupant Detection System

Do not disconnect the electrical connector.

12 Bolt

• 1.5 Nm
