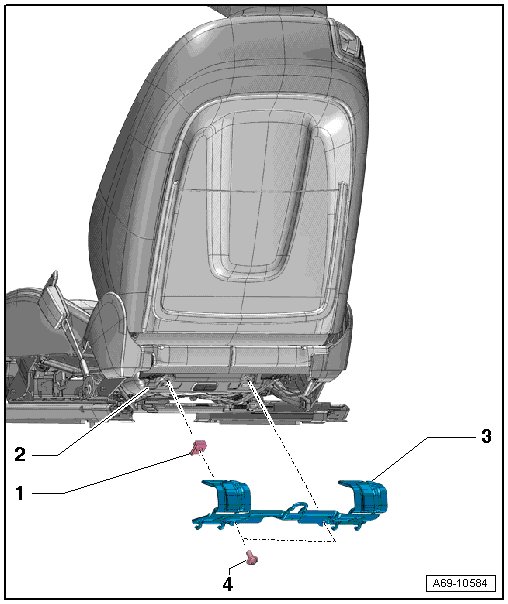

LATCH Child Seat Anchor Assembly Overview

LATCH Child Seat Anchor Assembly Overview

Front Seat






1 Threaded clip

• Quantity: 2

• Inserted in the seat pan

• Replace if bracket is damaged

2 Seat pan

3 Bracket

• Passenger seat only

• Bolted with the seat pan

• Check after an accident => [ Child Seat Anchorages, Checking after an Accident ] Child Seat Anchorages, Checking After an Accident

• Replace if damaged

• Removing and installing, refer to => [ LATCH Child Seat Anchor ] LATCH Child Seat Anchor

4 Bolt

• 8 Nm

• Quantity: 2

• Replace if bracket is damaged
