Air Bag Control Module: Locations







Control modules in interior and rear part ofvehicle

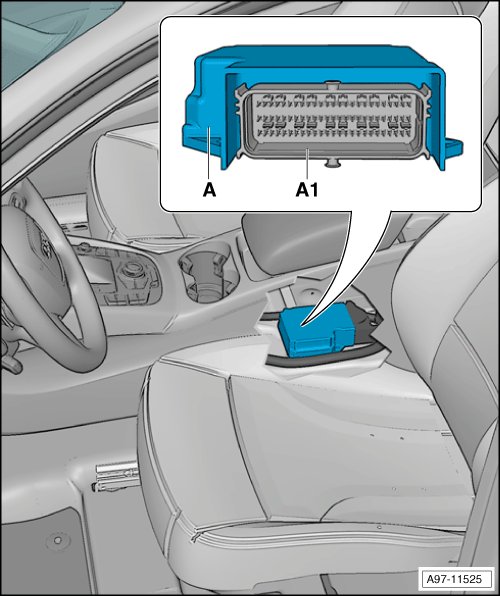

Airbag Control Module -J234-


Component Location:
Below center console.





A - Airbag Control Module -J234-

A1 - 100-Pin Connector -T100-
