Electronic Damping Control Module (J250), With Dynamic Ride Control

Electronic Damping Control Module (J250), with Dynamic Ride Control

• It is not necessary to code and adapt the control module when it is replaced. For this reason, it is not possible to perform "Replace" in "Guided Fault Finding" using the Vehicle Diagnostic Tester.

• The new electronic damping control module can be used right away.

• The electronic damping control module is installed behind the right side trim panel inside the luggage compartment.

Removing






- Switch off all electrical consumers.

- Remove the ignition key.

- Remove the cover from the right luggage compartment storage compartment.

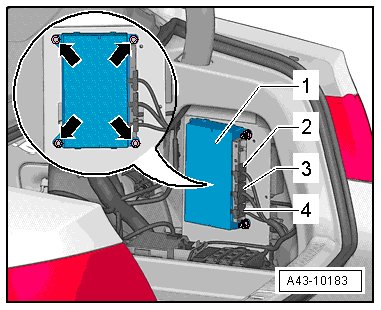

- Remove the nut - arrow -.

- Disconnect the connectors - 2 through 4 - from the control module.

- Remove the control module - 1 -.

Installing






Install in reverse order of removal. Note the following:

- Connect the connectors - 2 through 4 -.

- Install the nuts - arrows - and tighten to 2 Nm.
