Relay / Fuse Panel B -SB-

Relay

Relay /fuse panel B -SB-

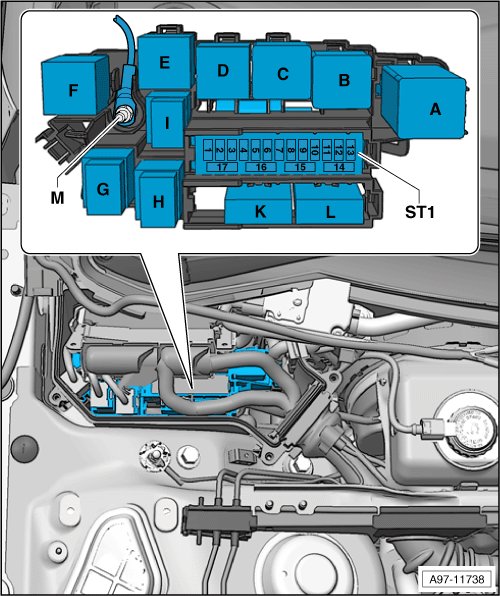

Component Location Relay/Fuse Panel B -SB- for models with left-hand drive:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with diesel engine
2) Only models with cylinder 4 gasoline engine
3) Only models with cylinder 6 gasoline engine
4) Only models with cylinder 8 gasoline engine

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .

• -SB14- through -SB17- in -ST1- for models from August 2011 only.

A - Automatic Glow Time Control Module -J179-

A - Engine Component Power Supply Relay -J757- ,

B - Starter Relay -J53-

B - Starter Relay 2 -J695-

C - Secondary Air Injection (AIR) Pump Relay -J299- ,

D - Power Supply Relay (terminal 30) -J317-

D - Motronic Engine Control Module (ECM) Power Supply Relay -J271- , ,

E - Fuel Pump (FP) Relay -J17-

E - Auxiliary Fuel Pump Relay -J832-

E - Coolant Circulation Pump Relay -J151- ,

E - Auxiliary Engine Coolant (EC) Pump Relay -J496-

E - Brake Booster Relay -J569-

E - Transmission Cooling Circuit Relay -J696-

F - Secondary Air Injection (AIR) Pump Relay 2 -J545- ,

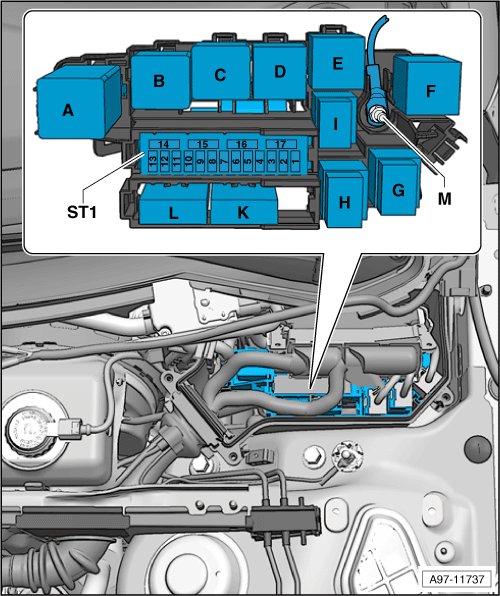

Component Location Relay/Fuse Panel B -SB- for models with right-hand drive:
In Electronics Box (in plenum chamber, driver's side)
5) Only models with diesel engine
6) Only models with cylinder 4 gasoline engine
7) Only models with cylinder 6 gasoline engine
8) Only models with cylinder 8 gasoline engine

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive

• -SB14- through -SB17- in -ST1- for models from August 2011 only.
