Instrument Cluster and Controlled Clock Receiver Assembly Overview
Component Locations: Comfort System

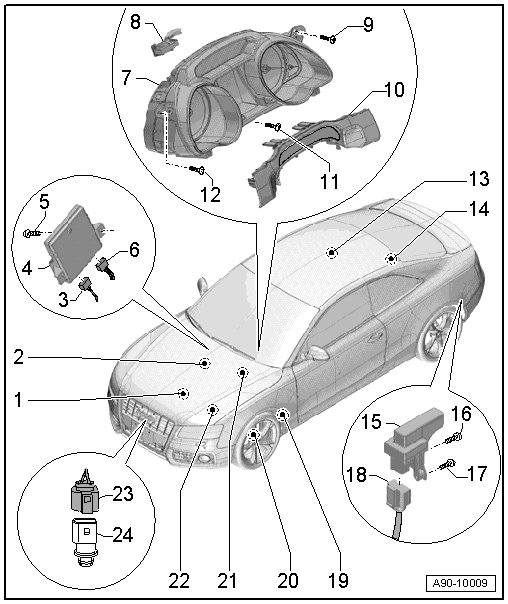

Instrument Cluster and Controlled Clock Receiver Assembly Overview
Note:
• All warning lamps in instrument cluster are fitted with light-emitting
diodes. In case an indicator lamp is malfunctioning, the instrument cluster
must be replaced
1 - Oil Level Thermal Sensor -G266-
2 - Oil Pressure Switch -F1- / -F22-
4 - Data Bus On Board Diagnostic Interface -J533-
7 - Instrument Cluster
• With Instrument Cluster Control Module -J285-
13 - Fuel Level Sensor -G-
14 - Fuel Level Sensor 2 -G169-
15 - Radio Frequency Controlled Clock Receiver -J489-
19 - Windshield Washer Fluid Level Sensor -G33-
• In washer fluid reservoir
20 - Brake Pad Wear Sensor
• In brake pads
• Left Front Brake Pad Wear Sensor -G34-
• Right Front Brake Pad Wear Sensor -G35-
21 - Brake Fluid Level Warning Switch -F34-
• In brake fluid reservoir cover
22 - Engine Coolant Level (ECL) Warning Switch -F66-
24 - Outside Air Temperature Sensor -G17-
