Instrument Cluster Control Module -J285-







Control modules in interior and rear part ofvehicle

Instrument Cluster Control Module -J285-


Component Location:

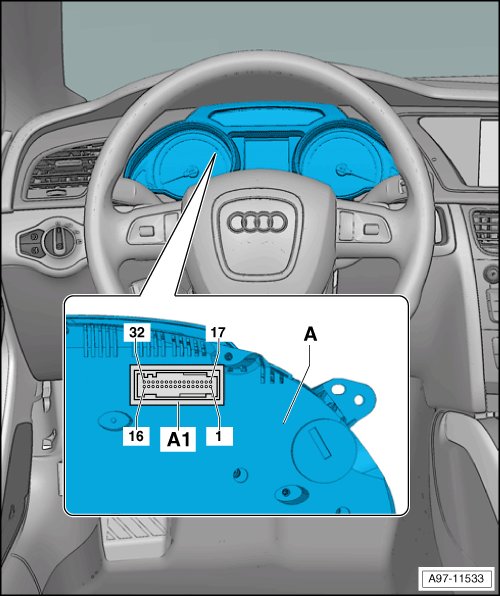

In instrument panel.





A - Instrument Cluster Control Module -J285-

A1 - 32-Pin Connector, grey -T32f-
