Climatronic Control Module -J255-







Control modules in interior and rear part ofvehicle

Climatronic Control Module -J255-

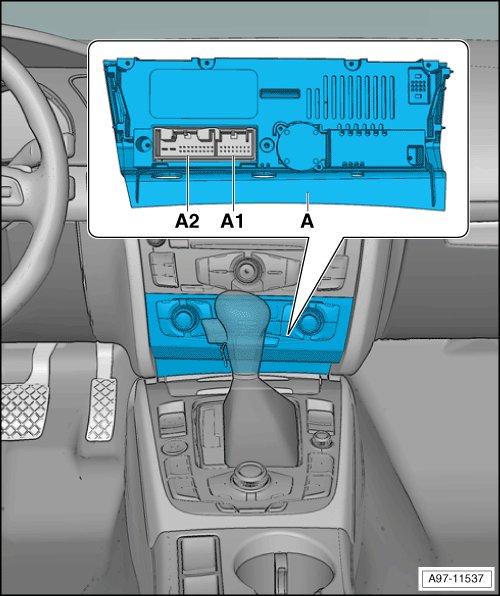

Component Location:
In middle part instrument panel.





A - Climatronic Control Module -J255-

A1 - 16-Pin Connector -T16i-

A2 - 20-Pin Connector -T20e-
