Right Front Seat Ventilation Control Module (Seat Heater Function Integrated)

Right Front Seat Ventilation Control Module (Seat Heater Function Integrated)

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

• Fixture for Seat Repair (VAS 6136)

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Turn the ignition on.

- Disconnect the battery Ground (GND) cable with the ignition switched on.

- Remove the front seat. Refer to => [ Power Standard Front Seat ] Power Standard Front Seat.

- Attach the front seat to the (VAS 6136). Refer to => [ Installing the Front Seat on VAS 6136 ] Installing the Front Seat On VAS 6136.

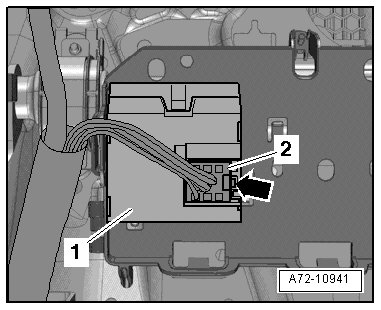

- Disconnect the connector - 2 -right front seat ventilation control module (J799) / (J800) - item 1 - by pressing the release - arrow -.

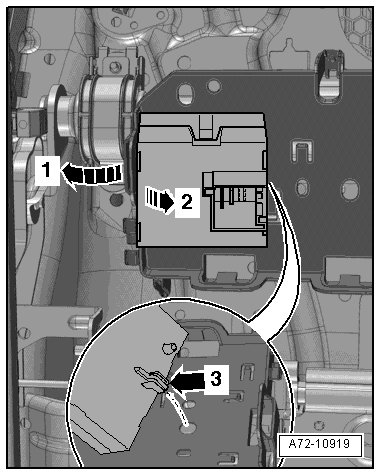

- Release the retaining strap - arrow 1 - using the (3409).






- Remove the control module from the bracket - arrow 2 -.

- Release the tab on the control module - arrow 3 - on the mount.

- Remove the control module.

Installing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Make sure the control module audibly engages into the bracket.

• Make sure the connectors are installed all the way in and are secure.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect the battery GND cable with the ignition turned on.

• If the airbag indicator lamp (K75) indicates a fault after installation, the Diagnostic Trouble Code (DTC) memory must be checked, deleted and checked again. Refer to vehicle diagnostic tester.
