Internet Access Control Module (J666) Internal Battery

Internet Access Control Module (J666) Internal Battery

The internet access control module has a battery. If information electronics control module 1 (J794) has stored a fault regarding the battery, then it is necessary to replace the battery.

- Turn off all electrical consumers.

- Remove the key.

Removing

- Remove the internet access control module. Refer to => [ Internet Access Control Module (J666) ] Internet Access Control Module (J666).

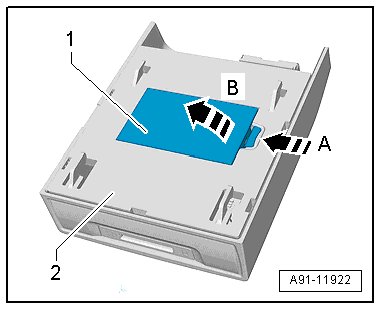

- Press the tab - arrow A - on the cover - 1 -, then fold the cover - 1 - in the direction of - arrow B - and remove it from the internet access control module - 2 -.

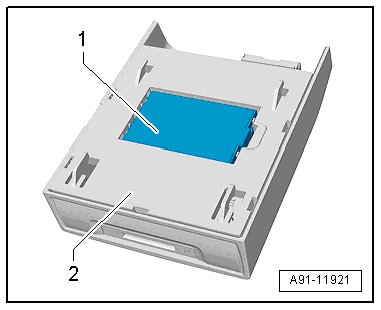

- Remove the battery - 1 - from the internet access control module - 2 -.






Installing

- Install in reverse order of removal.
