Lane Change Assistance, Preparing For Calibration

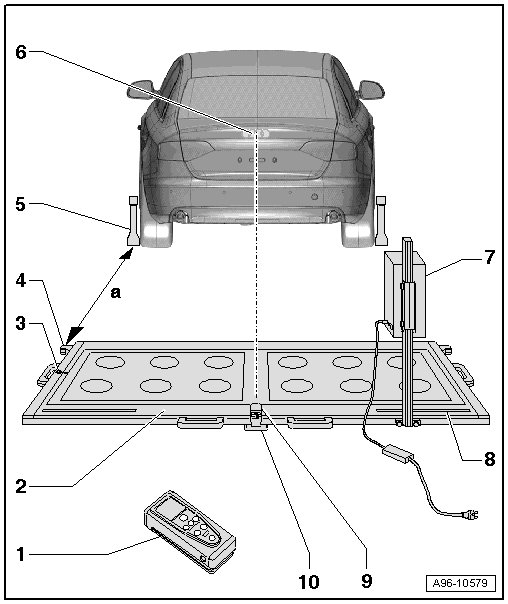

Lane Change Assistance, Preparing for Calibration






1 Spacing Laser (VAS 6350/2)

• For the distance measurement.

• For usage refer to the calibration tool (VAS 6350) operating instructions.

2 Calibration Tool (VAS 6350)

3 Water Level

• On the calibration tool (VAS 6350).

• To check horizontal position of the calibration tool (VAS 6350).

4 Catch Bracket

• For mounting the spacing laser (VAS 6350/2) for the distance measurement.

• Distance to the wheel center sensor (VAS 6350/1) on the rear wheels: Dimension - a - = 1700 ± 2 mm.

5 Wheel Center Sensor (VAS 6350/1)

• With wheel bolt adapter SW 16 and measuring paddle.

6 Brand Emblem

• The laser point is aligned on the center of the brand emblem.

7 Calibration Tool for Lane Changing Assist (VAS 6350/4)

• is moved from one side of measuring field to the other during calibration

• When installed correctly, the vehicle electrical system voltage line must be connected at the bottom left of the calibration device (as seen in direction of travel).

8 Measurement Scale

• For positioning the calibration tool for lane changing assist (VAS 6350/4).

9 Line Laser (VAS 6350/3)

• With "Laser eye protection".

• On the (VAS 6350).

• Switching on and off, refer to the (VAS 6350) operating instructions.

10 Plastic Foot

• Quantity: 3.

• Adjustable in order to adjust the horizontal position of the (VAS 6350).
