Collision Avoidance Module: Locations







Control modules in front part of vehicle

Distance Regulation Control Module -J428-

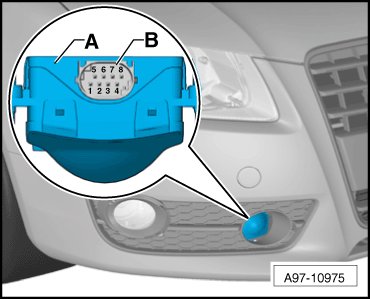

Component Location:
In bumper, right front





A - Distance Regulation Control Module -J428-

B - 8-Pin Connector, black -T8a-
