Secondary Air Injection Pump Motor, Checking

Secondary Air Injection Pump Motor, Checking

Observe all safety precautions: => [ Safety Precautions ] Generic Scan Tool

View clean working conditions: => [ Clean Working Conditions ] Clean Working Conditions

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, refer to the applicable wiring diagram.

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Secondary Air Injection (AIR) Pump Relay (J299) fuses OK.

• The Engine Component Power Supply Relay (J757) fuse OK.

• Battery voltage at least 12.5 V.

• All electrical consumers switched off (radiator fan must NOT run during test).

• A/C switched off.

• The ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

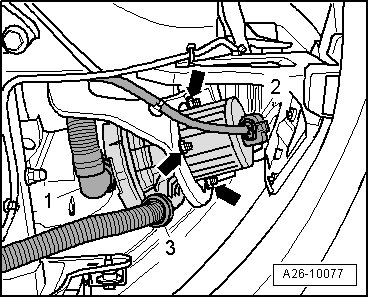

- Disconnect the secondary air injection hose. Under right headlamp.

- Disconnect the Secondary Air Injection (AIR) Pump Motor (V101) electrical harness connector - 2 -.





Checking voltage

- Switch the ignition on.

- Using a multimeter, check the Secondary Air Injection (AIR) Pump Motor (V101) electrical harness connector terminals 1 to 2 for voltage.





Specified value: battery voltage.

- Switch the ignition off.

If the specified value was not obtained:

- Switch the ignition on

- Using a multimeter, check the Secondary Air Injection (AIR) Pump Motor (V101) electrical harness connector terminal 2 to Ground (GND).





Specified value: battery voltage.

If the specified value was not obtained:

- Check the wiring connection from the Secondary Air Injection (AIR) Pump Relay (J299) socket 2/87 to the Secondary Air Injection (AIR) Pump Motor (V101) electrical harness connector terminal 2 for an open circuit or a short circuit.

- Check the wiring connections for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

Checking Ground (GND)

- Using a multimeter, check the Secondary Air Injection (AIR) Pump Motor (V101) electrical harness connector terminal 1 to Ground (GND) for resistance.





Specified value: 1.5 ohms Max.

If the specification was not obtained:

- Check the wiring for a short circuit to Battery (+), or an open circuit.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:

- Replace Secondary Air Injection (AIR) Pump Motor (V101). Refer to the appropriate service manual.

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

- Perform a road test to verify repair.

If the DTC does not return:

Generate readiness code. Refer to => [ Readiness Code ] Readiness Code.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:

- Replace the Motronic Engine Control Module (ECM) (J623). Refer to the appropriate service manual.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Readiness Code.
