Secondary Air Injection Combination Valves, Checking For Function and Leaks

Secondary Air Injection Combination Valves, Checking for Function and Leaks

Special tools, testers and auxiliary items required

• Hand Vacuum Pump (VAS 6213)

Procedure






• Vacuum lines and hose connections free of leaks.

• Vacuum lines not plugged.

- Remove the engine covers - 1 and 2 - upward.

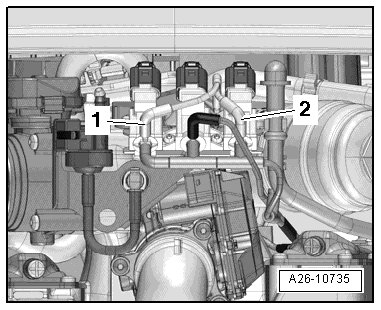

- Remove the vacuum hose - 1 - or - 2 - on the combination valve being checked.






- Connect the (VAS 6213) to the vacuum hose for the combination valve to be checked.

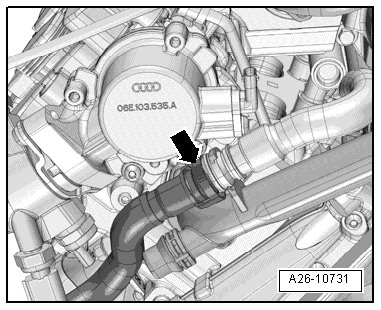

- Remove the front secondary air hose - arrow - from its bracket and disconnect it; do to this press the release buttons.






- Blow into the Secondary Air Injection (AIR) hose using light pressure (do not use pressurized air).

• The AIR combination valves must be closed. It must not be possible to blow through.

- Operate hand vacuum pump.

• The relevant combination valve must open, it must not be possible to blow through

- If the secondary air combination valve does not open, replace: Left, refer to => [ Secondary Air Injection Left Combination Valve ] Secondary Air Injection Left Combination Valve, right, refer to => [ Secondary Air Injection Right Combination Valve ] Secondary Air Injection Right Combination Valve.

Assembling

Assemble in reverse order of disassembling. Note the following:

• Replace the O-ring.
