Oxygen Sensors Overview
Oxygen Sensors Overview

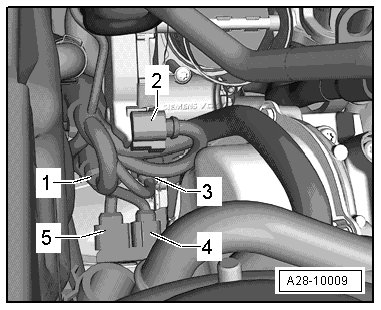

Heated Oxygen Sensor (HO2S) Connectors (cylinder bank 1)
1. For the fuel injectors (cylinder bank 1)
2. Throttle valve control module (J338)
3. Knock Sensor (KS) 1 (G61)
4. For the Heated Oxygen Sensor (HO2S) (G39) with Oxygen Sensor (O2S) heater (Z19)
5. For O2S after three way catalytic converter (G130) with heater for O2S 1 after catalytic converter (Z29)
Heated Oxygen Sensor (HO2S) Connectors (cylinder bank 2)
1. For Oxygen Sensor (O2S) 2 after Three Way Catalytic Converter (TWC) (G131) with heater for oxygen sensor 2 after catalytic converter (Z30)
2. For the Heated Oxygen Sensor (HO2S) 2 (G108) with oxygen sensor 2 heater (Z28)
3. For the fuel injectors (cylinder bank 2) and fuel pressure sensor (G247)
4. For Knock Sensor (KS) 2 (G66)

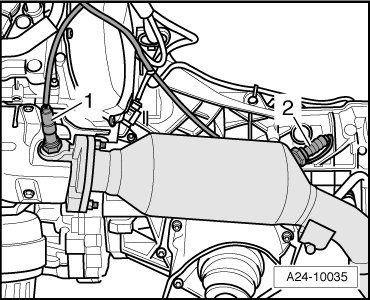

Oxygen Sensors Location, Cylinder Bank 1 (right)
1. Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) (G130) with heater for Oxygen Sensor (O2S) 1 after catalytic converter (Z29)
2. Heated Oxygen Sensor (HO2S) (G39) with Oxygen Sensor (O2S) Heater (Z19)
• Tightening Specifications: 55 Nm
Oxygen Sensors Location, Cylinder Bank 2 (left)
1. Heated oxygen sensor 2 (G108) with Oxygen Sensor (O2S) 2 heater (Z28)
2. Oxygen Sensor (O2S) 2 after catalytic converter (G131) with heater for Oxygen Sensor (O2S) 2 after catalytic converter (Z30)
• Tightening Specifications: 55 Nm
• Coat new oxygen sensors with an assembly paste.
• When installing the previous oxygen sensor, coat the thread with hot bolt paste. Refer to the Electronic Parts Catalog (ETKA).
• Assembly paste or hot bolt paste must not enter the slots on the oxygen sensor body.
• Always install the oxygen sensor wire in the same location so it does not come into contact with the exhaust pipe.
• When installing, bring all cable ties back to the same positions.
Heated Oxygen Sensor (HO2S) (G39) and Oxygen Sensor (O2S) Heater (Z19) , removing and installing, refer to => [ Heated Oxygen Sensor (G39) ] Heated Oxygen Sensor (G39).
Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) (G130) with heater for Oxygen Sensor (O2S) 1 after catalytic converter (Z29) , removing and installing, refer to => [ Oxygen Sensor after Three Way Catalytic Converter (G130) ] Oxygen Sensor After Three Way Catalytic Converter (G130).
Heated Oxygen Sensor (HO2S) 2 (G108) with Oxygen Sensor (O2S) 2 heater (Z28) => [ Heated Oxygen Sensor 2 (G108) ] Heated Oxygen Sensor 2 (G108).
Oxygen Sensor (O2S) 2 after catalytic converter (G131) with heater for Oxygen Sensor (O2S) 2 after catalytic converter (Z30) => [ Oxygen Sensor 2 after Catalytic Converter (G131) ] Oxygen Sensor 2 After Catalytic Converter (G131).
