Information Bus: Locations
Control modules in interior and rear part ofvehicle

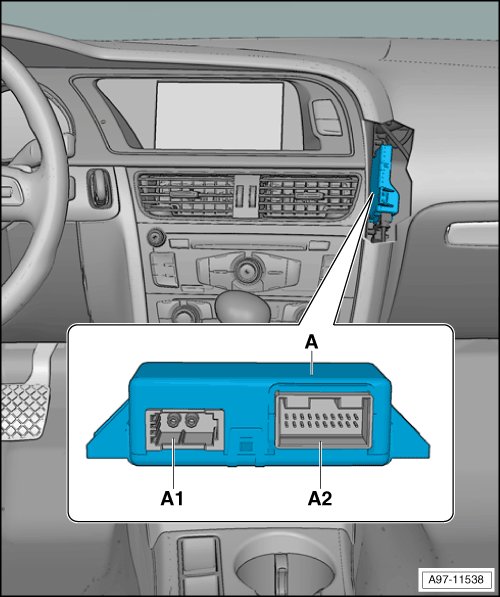

Data Bus On Board Diagnostic Interface -J533-
Component Location:
Below instrument panel.
A - Data Bus On Board Diagnostic Interface -J533-
A1 - Double Connector -T2dl-
A2 - 20-Pin Connector -T20d-
