Accelerator Pedal Module Overview

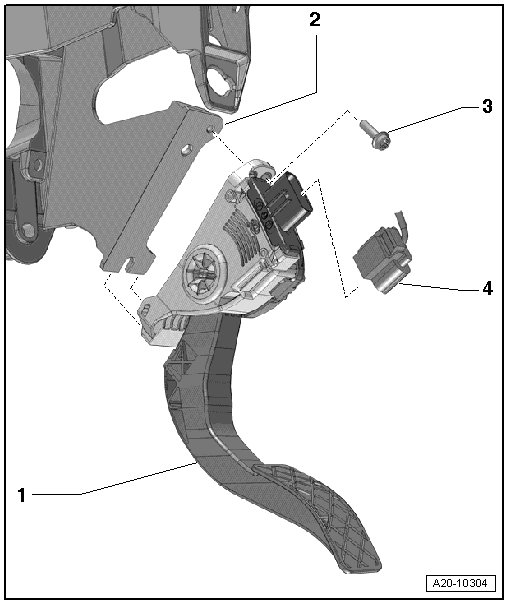

Accelerator Pedal Module Overview






1 Accelerator Pedal Module

• With accelerator pedal position sensor (G79) and accelerator pedal position sensor 2 (G185)

• Removing and Installing, refer to => [ Accelerator Pedal Position Sensor (G79) with Accelerator Pedal Position Sensor 2 (G185) ] Service and Repair

• Perform after the first kick-down adaptation in Guided Functions vehicle diagnostic tester.

2 Pedal Bracket

3 Bolt

• 8 Nm

4 Connector
