Data Link Connector: Locations







Control modules in interior and rear part ofvehicle

16-Pin Connector -T16- , Data Link Connector

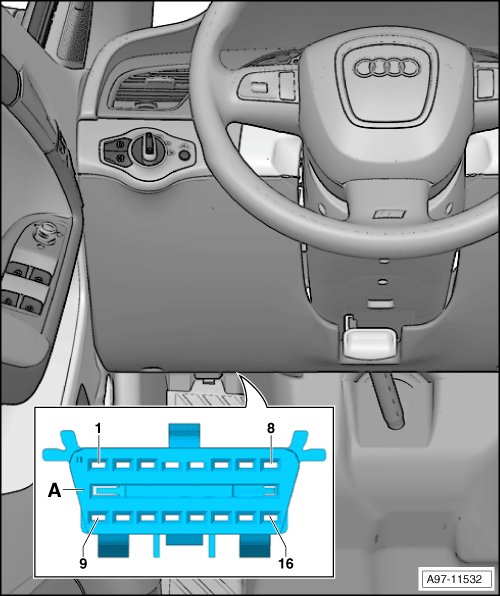

Component Location:
Instrument panel driver's side, bottom.





A - 16-Pin Connector -T16- , Data Link Connector
