Overview Of Relay

Relay

Overview of Relay

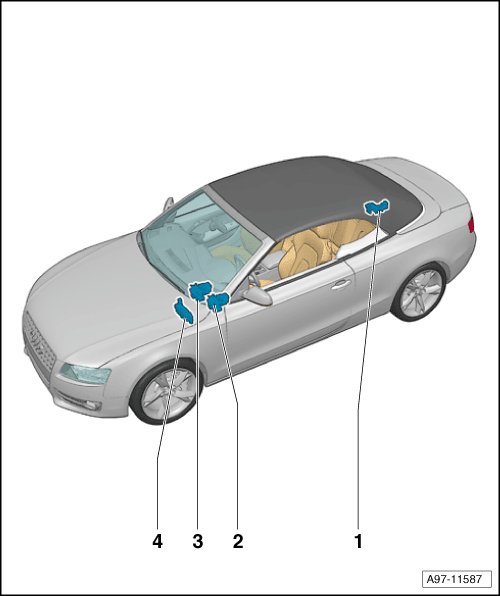

1 - Relay /Fuse Panel F -SF-
• Component: -J9- , -J807- , -J911- , -J912-
• Component Location for models through July 2011: => [ Relay / through July 2011 ] Relay /Fuse Panel F -SF- through July 2011
• Component Location for models from August 2011: => [ Relay / from August 2011 ] Relay /Fuse Panel F -SF- from August 2011

2 - Relay / fuse panel with Vehicle Electrical System Control Module -J519-
• Component: -J160- , -J329- , -J413- , -J910-
• Component Location for models with left-hand drive => [ Relay / fuse panel with ] Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-
• Component Location for models with right-hand drive => Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-

3 - 3-Pin relay / fuse panel
• Component: -J359- , -J360- , -J604-
• Component Location for models with left-hand drive => [ 3-Pin relay / fuse panel ] 3-Pin Relay / Fuse Panel
• Component Location for models with right-hand drive => 3-Pin Relay / Fuse Panel

4 - Relay /fuse panel B -SB-
• Component: -J17- , -J53- , -J151- , J545, -J179- , -J271- , -J299- , -J317- , -J496- , -J569- , -J695- , -J696- , -J757- , -J832-
• Component Location for models with left-hand drive => [ Relay / ] Relay / Fuse Panel B -SB-
• Component Location for models with right-hand drive => Relay / Fuse Panel B -SB-
