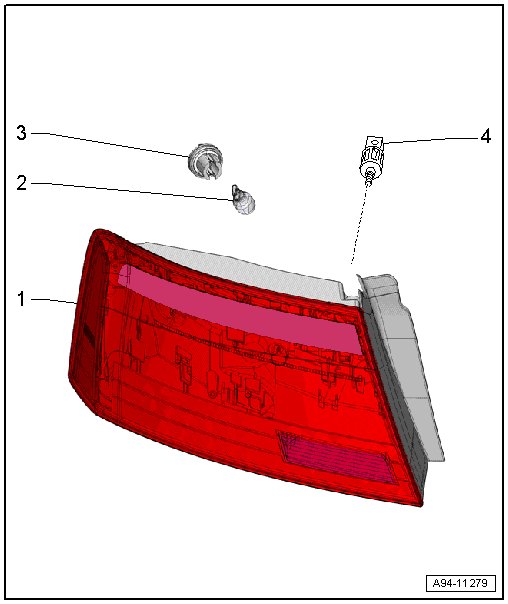

Outer Tail Lamps Overview

Outer Tail Lamps Overview

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.






1 Outer Tail Lamps

• Removing and installing, refer to => [ Outer Tail Lamps ] Outer Tail Lamps.

2 Left Back-Up Lamp

• Left back-up lamp (M16)

• Right back-up Lamp (M17)

• 12V, 18 W

• W16W

• Bulb, replacing, refer to => [ Backup Lamp Bulb (M16)/(M17) ] Backup Lamp Bulb (M16)/(M17).

3 Lamp Socket

• Removing and installing, refer to => [ Backup Lamp Bulb (M16)/(M17) ] Backup Lamp Bulb (M16)/(M17).

4 Threaded Studs

• 3.5 Nm
