Left High-intensity Gas Discharge Lamp Control Module -J343-







Control modules in front part of vehicle

Left High-intensity Gas Discharge Lamp Control Module -J343-

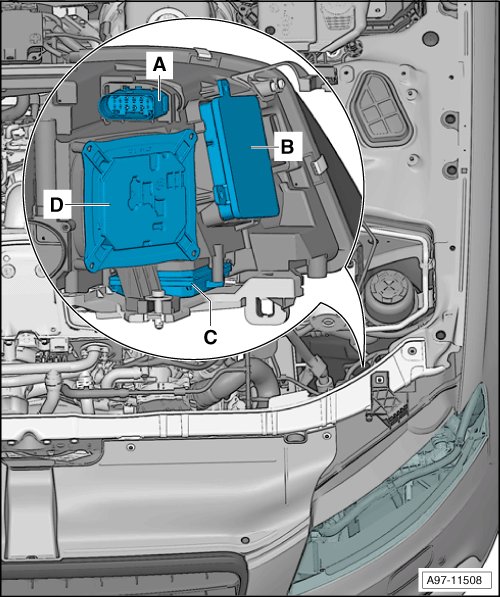

Component Location:
On left headlamp.





A - 14-Pin Connector -T14a-

B - Left High-intensity Gas Discharge Lamp Control Module -J343-

C - Left Headlamp Power Output Stage -J667-

D - Left LED Parking Lamp/DRL Module -L176-
