Daytime Running Lamp and Parking Lamp Control Module (J860)/(J861)

Daytime Running Lamp and Parking Lamp Control Module (J860)/(J861)

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

• Headlamps must be adjusted after performing measures that could influence headlamp adjustment. Refer to => [ HID Headlamp, Adjusting ] HID Headlamp, Adjusting.

Danger to life due to high voltage.

• Always disconnect the battery wire strap before working on gas-discharge headlamp components marked with yellow high-voltage symbols.

Removing






- Remove headlamp housings, refer to => [ Headlamp Housing ] Headlamp Housing.

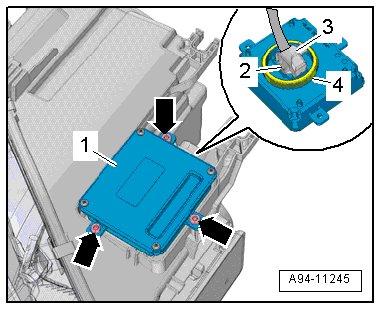

- Remove the bolts - arrows -.

- Remove the control module - 1 - from the headlamp housing.

- Press the release - 2 - and disconnect the connector - 3 -.

- Remove the control module.

Installing

• Tightening specification, refer to => [ HID Headlamps Overview, from MY 2012 ] HID Headlamps Overview, From MY 2012.

Install in reverse order of removal. Note the following:

- Make sure the seal - 4 - between the control module and the headlamp housing is not damaged.

- Install the headlamp housing, refer to => [ Headlamp Housing ] Headlamp Housing.
