Halogen Headlamps, Through MY 2011

High Beam or Daytime Running Lamp Bulb (M30)/(M32) or Daytime Running Lamp Bulbs (L174)/(L175)

Removing






- Remove the headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

- Remove the high beam/turn signal housing cover - 1 - from the headlamp - arrow -.

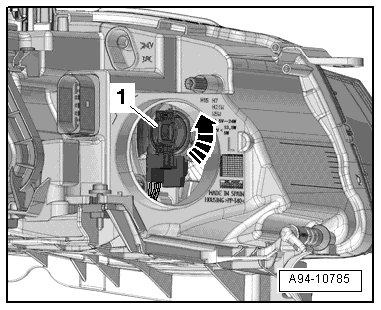

- Turn the bulb - 1 - counterclockwise - arrow - and remove it from the headlamp.






Installing

Install in the reverse order of removal, observing the following:

- Install the new bulb into the headlamp without touching the bulb with bare hands.

- Close the housing cover - 1 -. When doing this, the strap - 2 - must align with the mark - 3 - on the headlamp.






- Install the headlamp. Refer to => [ Headlamp Housing ] Headlamp Housing.
