Rear Interior/Reading Lamp

Rear Interior/Reading Lamp

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing

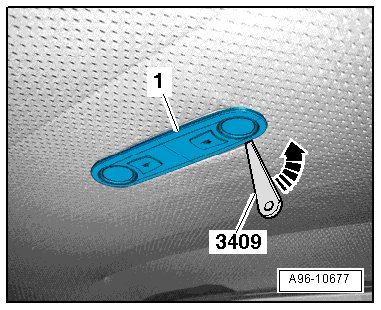

- Carefully pry out the rear interior/reading lamp - 1 - out of the roof cut out - arrow - using (3409).

- Disconnect the electrical connector.

Installing

Install in reverse order of removal, observing the following:

- Insert the rear interior/reading lamp into the roof cutout and clip it in.
