Front Interior Lamp/Reading Lamp

Front Interior Lamp/Reading Lamp

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- If the vehicle has ultrasonic interior monitoring, remove the individual sensor. Refer to => [ Anti-Theft Alarm System Sensor (G578) ] Anti-Theft Alarm System Sensor (G578).

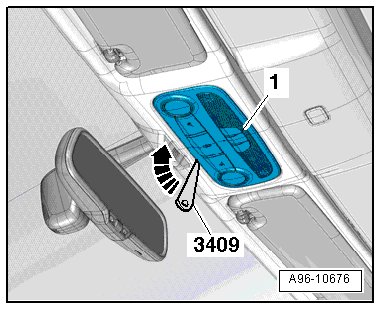

- Carefully pry off the interior/reading lamp - 1 - out of roof the cut out - arrow - using (3409).

- Disconnect the electrical connectors.

Installing

Install in reverse order of removal, observing the following:

- Insert interior/reading lamp into the roof cut out and clip in.

- Install the individual sensor. Refer to => [ Anti-Theft Alarm System Sensor (G578) ] Anti-Theft Alarm System Sensor (G578).
