Door Lamp: Service and Repair

Door Opener Illumination (L108)/(L109)

Removing






- Remove the front door trim..

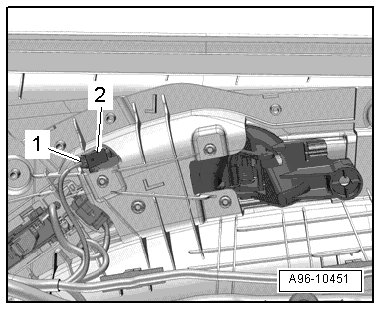

- Disconnect the electrical connector - 1 -.

- Turn the bulb socket - 2 - to the left and remove it from the door opener.

Installing

Install in reverse order of removal, observing the following:

- Insert the door opener illumination bulb into the opening and engage.

- Install front door trim..
