LED Tail Lamps, From MY 2012

Backup Lamp Bulb (M16)/(M17)

Removing






- Remove the outer tail lamp, refer to => [ Outer Tail Lamps ] Outer Tail Lamps.

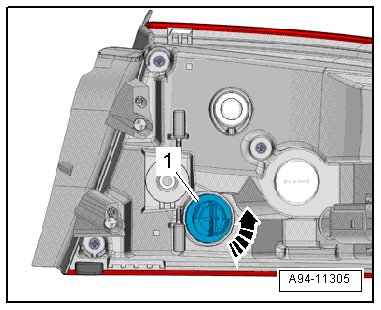

- Turn the bulb socket - 1 - counter-clockwise - arrow - and remove it from the tail lamp housing.

- Remove the backup lamp bulb from the bulb socket.

Installing

• Tightening specification, refer to => [ Inner Lamps ] Inner Lamps.

Install in reverse order of removal. Note the following:

- Insert new bulb in the bulb socket. Do not touch the glass bulbs with bare hands.

- Install the outer tail lamp, refer to => [ Outer Tail Lamps ] Outer Tail Lamps.
