Driver Side Instrument Panel Cover Assembly Overview

Driver Side Instrument Panel Cover Assembly Overview

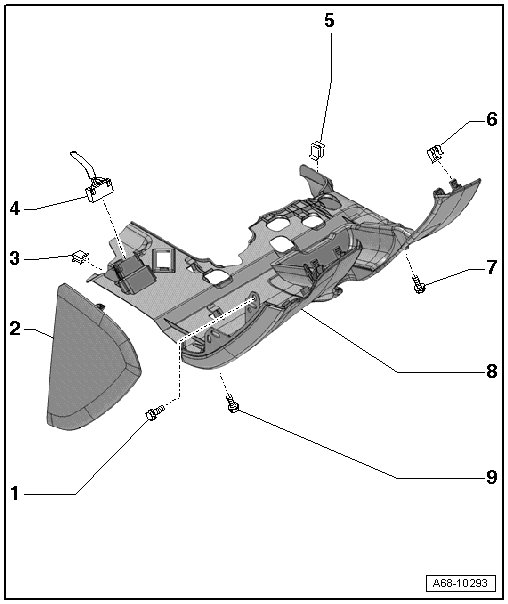

• The driver side instrument panel cover on a vehicle without a knee airbag is shown in the illustration. For vehicles with a knee bag, refer to => [ Driver Side Instrument Panel Cover with Knee Airbag ] Driver Side Instrument Panel Cover with Knee Airbag.






1 Bolt

• 3 Nm

2 Side Cover

• For instrument panel

• Removing and installing, refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover

3 Clips

• Insert in the footrest

4 Connector, 16-Pin (T16)

• Diagnostic connector

5 Clips

• Install on the A/C unit

6 Spring Clamp

• For the driver side instrument panel cover

• Quantity: 4

• Press into the instrument panel

7 Bolt

• 3 Nm

8 Driver Side Instrument Panel Cover

• Removing and installing, refer to => [ Driver Side Instrument Panel Cover ] Driver Side Instrument Panel Cover

• One some country versions with knee airbag with cut-out for the knee airbag

• Removing and installing, countries with knee airbags. Refer to => [ Driver Side Instrument Panel Cover with Knee Airbag ] Driver Side Instrument Panel Cover with Knee Airbag

9 Bolt

• 3 Nm
