Radio and Navigation System Frame

Radio and Navigation System Frame

Removing






- Remove the center instrument panel vent. Refer to => [ Center Instrument Panel Vent ] Center Instrument Panel Vent.

- Remove the radio/navigation system.

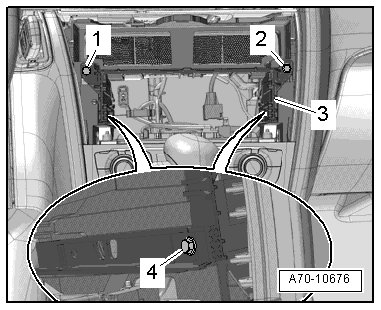

- Remove the bolts - 1 - and - 2 - on the front of the installation frame.

- Remove the side bolts - 4 -.

- Pull the installation frame - 3 - back and remove it.

Installing

To install, perform the steps used in removal in reverse order.

For the correct tightening specifications, refer to => [ Instrument Panel Assembly Overview ] Instrument Panel Assembly Overview.
