Instrument Cluster Mounting Frame







Instrument Cluster Mounting Frame

Removing






- Remove the instrument cluster.

- Remove the light switch trim. Refer to => [ Side Speaker Trim ] Side Speaker Trim.

- Remove the MMI screen.

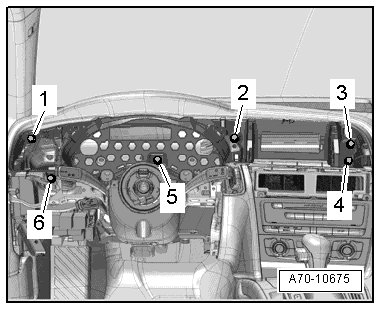

- Remove the bolts - 1 through 6 - and the mounting frame.

Installing

To install, perform the steps used in removal in reverse order.

For the correct tightening specifications, refer to => [ Instrument Panel Assembly Overview ] Instrument Panel Assembly Overview.
