Left Retaining Plate With Footwell Door Motor (V261)

Left Retaining Plate with Footwell Door Motor (V261)

- Remove the left mounting plate and footwell door motor. Refer to a=> [ Left Retaining Plate with Footwell Door Motor (V261) ] Left Retaining Plate With Footwell Door Motor (V261).

• The mounting plate with the Footwell Door Motor is installed only on vehicles equipped with the "Basis" A/C system.

• Currently in this vehicle, all motors are identical in construction. During the basic setting, the control motors are assigned and adapted corresponding to the switching sequence of the wiring. If this sequence does not conform the specification, the control motors will adapt incorrectly and the door control will be wrong. Refer to => [ A/C Control Motor Block Diagram ] A/C Control Motor Block Diagram.

• The control motor shaft does not have a stop; therefore the shaft of these control motors can be inserted into the cam plate in any position.

• Depending on the production date, there are different versions of the levers and connections on the A/C unit. Refer to => [ Air Conditioner, Levers and Connecting Elements ] Air Conditioner, Levers and Connecting Elements and the Electronic Parts Catalog (ETKA).

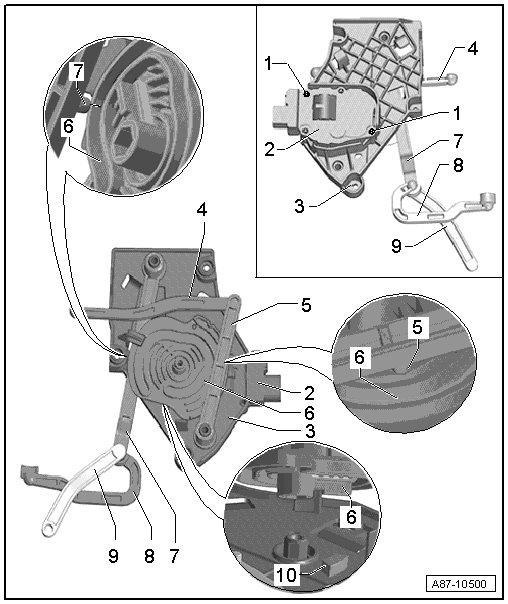

1 Screw

2 Footwell Door Motor (V261)

3 Mounting Plate

4 Connecting Rod

• To the doors for the left and right dash panel vents

5 Actuating Lever

6 Cam Disk

• On the Footwell Door Motor (V261)

7 Actuating Lever

8 Connecting Rod

• To the doors for the rear footwell vents

9 Connecting Rod

• To the doors for the front footwell vents

10 Cam Plate Stop
