Fuel Pressure and Residual Pressure, Checking, RS5 Through MY 2011

Fuel Pressure and Residual Pressure, Checking, RS5 through MY 2011

Special tools, testers and auxiliary items required

• Pressure Tester (VAS 6550) with Hoses (VAS 6550/1) and (VAS 6550/2)

• Remote Control (V.A.G 1348/3A) with Remote Control for VAG 1348 (V.A.G 1348/3-3)

• Connector Test Set (V.A.G 1594C)

• Measuring container, fuel-resistant

Procedure






- Follow all test requirements. Refer to => [ Test Conditions ] Initial Inspection and Diagnostic Overview.

- Remove the rear bench seat.

- Remove the locking flange cover - arrows -.

- Disconnect the connector - 1 - on the locking flange.






• Ignore - 2 -.

- Connect the (V.A.G 1348/3A) using the (V.A.G 1348/3-3) and cable from the (V.A.G 1594C) to the terminal - 1 -.






- Tape (V.A.G 1348/3-3) with insulating tape - arrow - to prevent a short circuit.

- Connect the connector terminal - 5 - to the chassis Ground (GND) with an adapter cable from the (V.A.G 1594C).

- Route (V.A.G 1348/3A) toward front in engine compartment.

- Remove the center plenum chamber cover.






- Release the retainer - arrow A - and open the cover - arrow B -.






- Connect the alligator clip to the battery jump start terminal (U6) - A - in the terminal 30 wire junction 2 (TV22) in the plenum chamber.






- Open the fuel filler door.






- Remove the fuel filler cap - arrow -.

- Remove the engine cover - arrows -.













There is a risk of injury because the fuel is under high pressure.

• To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

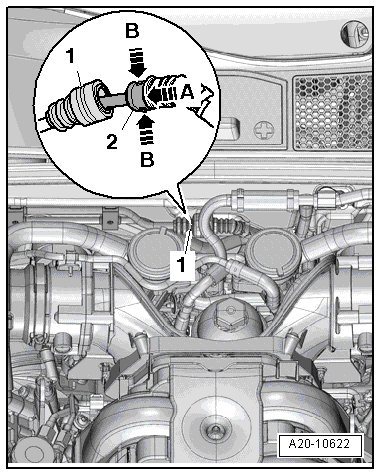

- Disconnect the fuel line by first folding the boot - 1 - downward.

- First push the hose coupling - 2 - downward - arrow A -, then press the release buttons - arrow B -.

- Remove the hose coupling with the release buttons pressed.

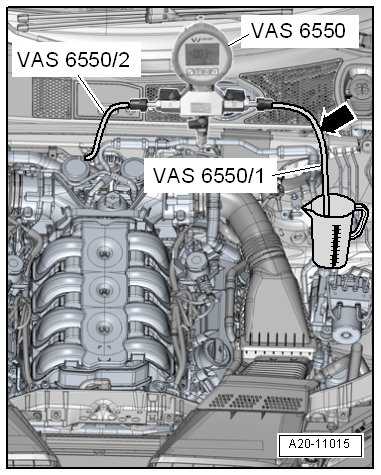

- Connect the (VAS 6550) and (VAS 6550/2) to the fuel supply line.






- Connect the hose (VAS 6550/1) and hold it inside a fuel resistant container.








Risk of fuel leak.

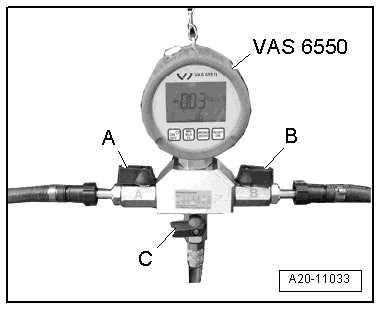

• Make sure that the drain - C - is closed.

• The level is perpendicular to the direction of flow.

- Open the shut-off valves - A and B -.

• The levers point in the direction of flow.

- Read the fuel pressure on the (VAS 6550) :

• Specified value: 5.0 to 8.0 bar (72 to 116 psi).

If the specification is not attained:

- Check the fuel delivery quantity for the fuel pump. Refer to => [ Fuel Delivery Rate, Checking, RS5 through MY 2011 ] .

Checking Holding Pressure

- Watch the pressure fall on the (VAS 6550) while checking the holding pressure and checking for leaks:

• After 10 minutes there must be a residual pressure of at least 3 bar.

If the holding pressure drops below 3 bar (43 psi):

• Check the connection between the (VAS 6550) and the fuel supply line for leaks.

• Check pressure tester (VAS 6550) for leaks.

• Check fuel lines and their connections for leaks.

If no faults are detected:

• Replace the locking flange with the fuel filter and fuel pressure regulator. Refer to => [ Fuel Delivery ] Fuel Delivery.

- Repeat the residual pressure check.

If there are still leaks:

• There is a leak at the check valve in the fuel pump: Replace the fuel delivery unit, refer to => [ Fuel Delivery ] Fuel Delivery.

Assemble in reverse order of disassembling. Note the following:

• The ignition must be off.

• Open the shut-off valve - B - and drain valve - C - and let the fuel drain into the measuring container before removing the pressure gauge for the fuel pressure.






- Remove the (VAS 6550) with hoses (VAS 6550/1) and (VAS 6550/2).

- Attach the fuel line so that it clicks into place.

- Press the fuel line on again and pull to make sure the connection is engaged correctly.
