Crankshaft, Cylinder Block

Special Tools

Special tools, testers and auxiliary items required

• Counter Hold Tool (10 - 201)

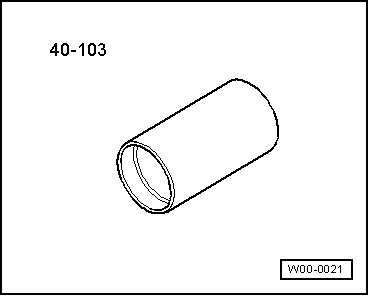

• Sleeve (40 - 103)






• Retainer (3036)






• Spanner Wrench (3212)






• Locking Pin (T10060 A)






• Assembly Tool (T10122)






• Pulling Hook (T20143/2)






• Assembling Device (T40048)






• Dial Gauge 0-10 mm (VAS 6079)






• Pilot Drift (VW 222 A)






• Dial Gauge Holder (VW 387)






• Thrust Plate (VW 402)

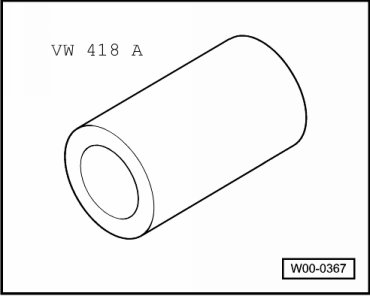

• Tube 31.5 mm Dia. (VW 418 A)

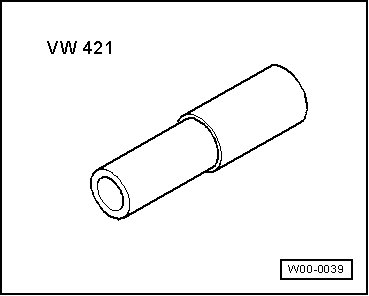

• Tube 28 mm Dia. 100 mm (VW 421)






• Not illustrated:

• Assembly Device (T10122/1)

• Pull Sleeve (T10122/2)

• Assembly Device (T40048/1)

• Pull Sleeve (T40048/2)

• Cylinder Gauge (VAS 6078) or Inside Micrometer Set 18-100 mm (US1033/S)

• Engine and Transmission Holder (VAS 6095)

• Engine and Transmission Holder (VAS 6095)
