Camshaft Timing Chains Overview

Camshaft Timing Chains Overview

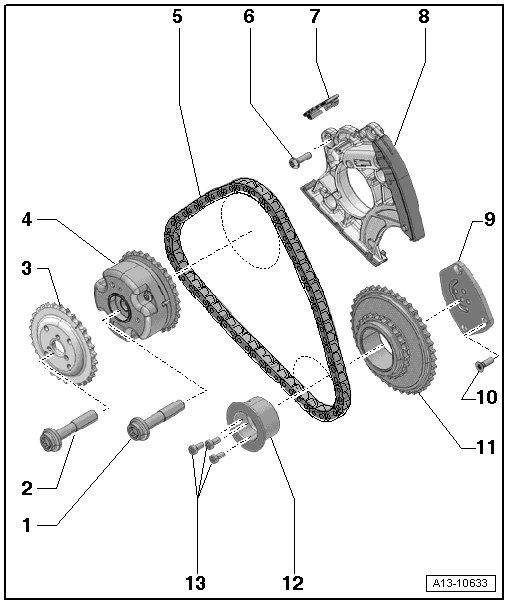

Left Camshaft Timing Chain






1 Bolt

• 80 Nm + 90° turn

• Replace

2 Bolt

• 80 Nm + 90° turn

• Replace

3 Camshaft Chain Sprocket for the Exhaust Camshaft

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

4 Camshaft Adjuster for Intake Camshaft

• Identification "Intake"

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

5 Left Camshaft Timing Chain

• Mark the running direction with paint for reinstallation

• Remove from the camshafts, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

• Removing and installing, refer to => [ Camshaft Timing Chains ] Camshaft Timing Chains

6 Bolt

• 9 Nm

7 Gliding piece

8 Left Camshaft Timing Chain Tensioner

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

9 Drive Chain Sprocket Bearing Plate

10 Bolt

• 8 Nm + 45° turn

• Replace

11 Left Camshaft Timing Chain Drive Sprocket

12 Pivot Pin for Drive Sprocket

• for the left camshaft control chain

13 Bolts

• Tightening specification - item 3 - => [ (Item 3) Bolts ] Timing Mechanism Drive Chain Overview

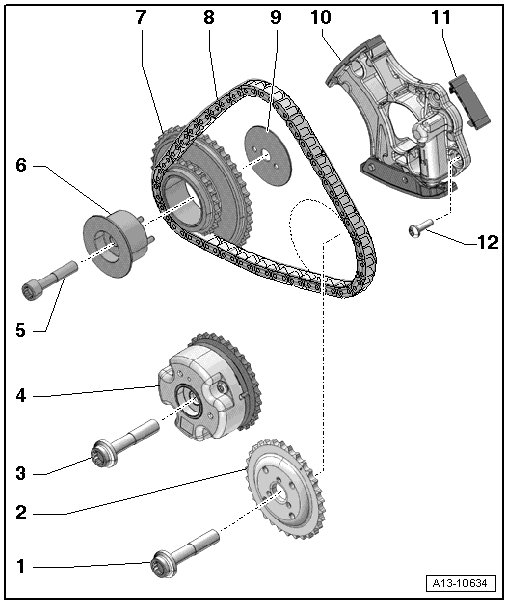

Right Camshaft Timing Chain






1 Bolt

• 80 Nm plus an additional 90° turn

• Replace

2 Camshaft Chain Sprocket for the Exhaust Camshaft

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

3 Bolt

• 80 Nm plus an additional 90° turn

• Replace

4 Camshaft Adjuster for Intake Camshaft

• Identification "Intake"

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

5 Bolt

• Tightening specification - item 15 - => [ (Item 15) Bolt ] Timing Mechanism Drive Chain Overview

6 Pivot Pin for Drive Sprocket

• For the right camshaft timing chain

• Asymmetrical version

• Installed position, refer to => [ Installation Location of the Mounting Pins for the Right Camshaft Timing Chain Drive Sprocket ] Timing Mechanism Drive Chain Overview

7 Right Camshaft Timing Chain Drive Sprocket

• Installed position, refer to => [ Installation Location of the Mounting Pins for the Right Camshaft Timing Chain Drive Sprocket ] Timing Mechanism Drive Chain Overview

8 Right Camshaft Timing Chain

• Mark the running direction with paint for reinstallation

• Remove from the camshafts, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

• Removing and installing, refer to => [ Camshaft Timing Chains ] Camshaft Timing Chains

9 Thrust Washer for Drive Sprocket

• For the right camshaft timing chain

• Asymmetrical version

• Installed position, refer to => [ Installation Location of the Mounting Pins for the Right Camshaft Timing Chain Drive Sprocket ] Timing Mechanism Drive Chain Overview

10 Right Camshaft Timing Chain Tensioner

• Removing and installing, refer to => [ Camshaft Timing Chains, Removing from Camshafts ] Camshaft Timing Chains, Removing From Camshafts

11 Gliding Piece

12 Bolt

• 9 Nm
