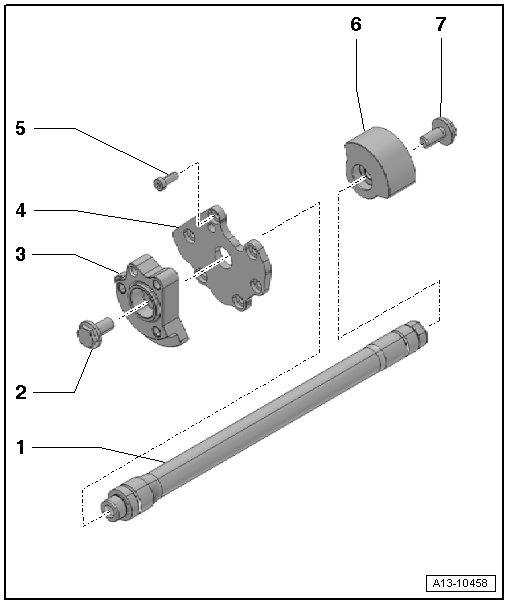

Balance Shaft Overview

Balance Shaft Overview






1 Balance Shaft

• Removing and installing, refer to => [ Balance Shaft ] Balance Shaft

2 Bolt

• 60 Nm

• For loosening and tightening, use the locating pin (T40116) as a counter holder

3 Balance Shaft Transmission Side

• Can only be placed on the balance shaft in one position

4 Gear Carrier

5 Bolt

• 13 Nm

6 Balance Shaft Belt Pulley Side

• Can only be placed on the balance shaft in one position

7 Bolt

• 60 Nm

• For loosening and tightening, use the locating pin (T40116) as a counter holder
